Precision and versatility for projects of any size

Berry's Concrete Pumping is proud to offer a versatile and reliable fleet designed to meet the demands of any project. Our fleet of 10 boom pumps range from 31 meters to 56 meters, along with our 5 line pumps, providing the flexibility and reach needed for projects of any scale. Whether you're tackling a large commercial build or a smaller residential job, our equipment and experienced operators ensure precise and efficient concrete placement every time.

Quick Links:

Boom Pumps:

Line Pumps:

Our Fleet

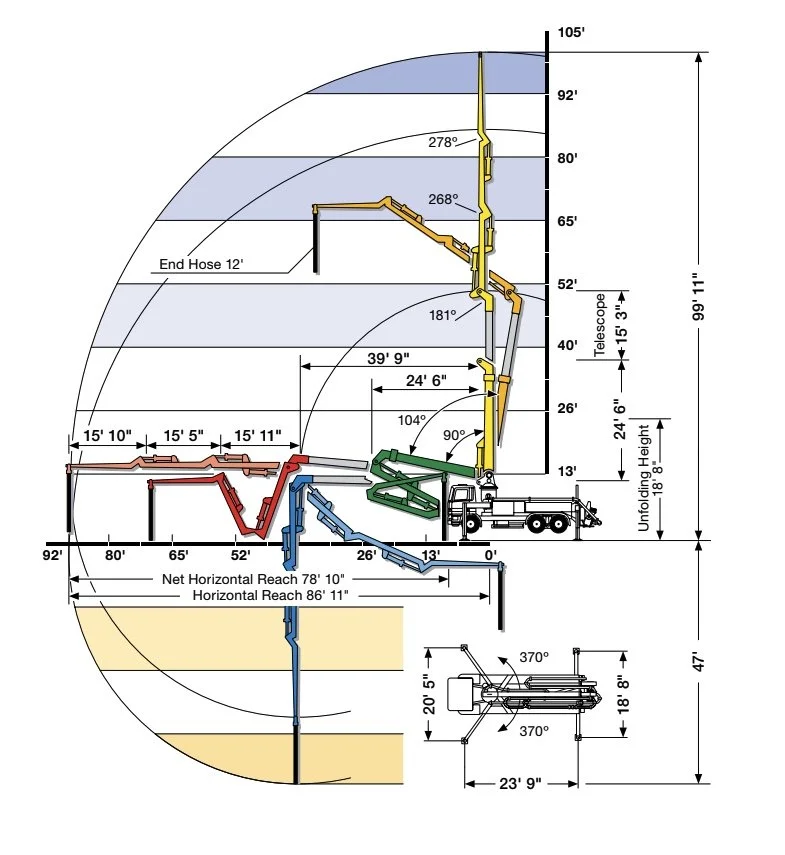

31 Meter Boom Pump - Schwing

    SPECIFICATIONS
    U.S.
    Metric

    Vertical Reach
    99' 11"
    30.5 m

    Horizontal Reach
    86' 11"
    26.5 m

    Below Grade Reach w/ Tip Hose
    47'
    14.3 m

    Pipeline Diameter
    5"
    125 mm

    Boom Type / Sections
    Telescopic Double Z / 5

    Boom Rotation
    740 degrees

    Unfolding Height
    18' 8"
    5.7 m

    Outrigger Type - Front
    Hydraulic Telescoping & Jacking

    Outrigger Type - Rear
    Hydraulic Slewing & Jacking

    Outrigger Soil Pressure w/o Dunnage (front/rear)
    441/353 psi
    30.4/24.3 bar

    Outrigger Soil Pressure w/ Dunnage (front/rear)
    80/64 psi
    5.5/4.4 bar

    Outrigger Width - Front
    20' 5"
    6.2 m

    Outrigger Width - Rear
    18' 8"
    5.7 m

    Outrigger Length
    23' 9"
    7.2 m

    PUMP SPECIFICATIONS
    U.S.
    Metric

    Theor. Concrete Output
    208 cu yds/h
    159 cu m/h

    Max Pressure on Concrete
    1007 psi
    69 bar

    Max Strokes Per Minute
    32

    Max. Aggregate Size
    2.5"
    64 mm

    Material Cylinder Diameter
    9"
    230 mm

    Material Cylinder Stroke
    79"
    2000 mm

    Differential Cylinder Diameter
    5.1"
    130 mm

    Maximum Oil Flow
    105.7 gal/min
    400 I/min

    Hydraulic Circuitry Type
    MPS

    Valve Type
    B Rock

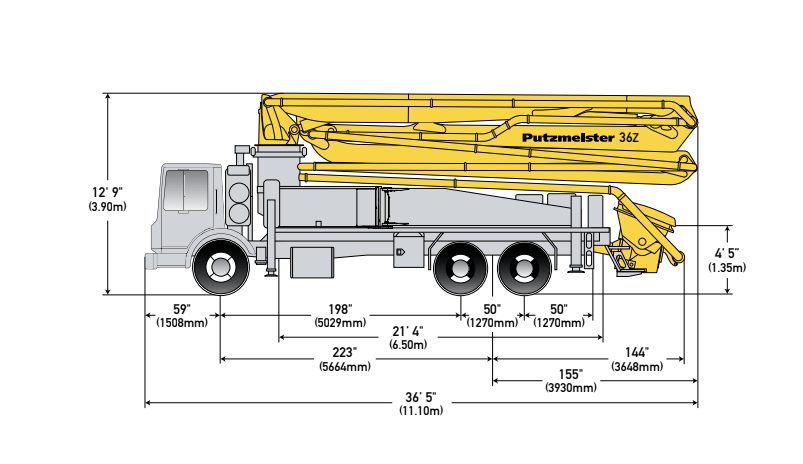

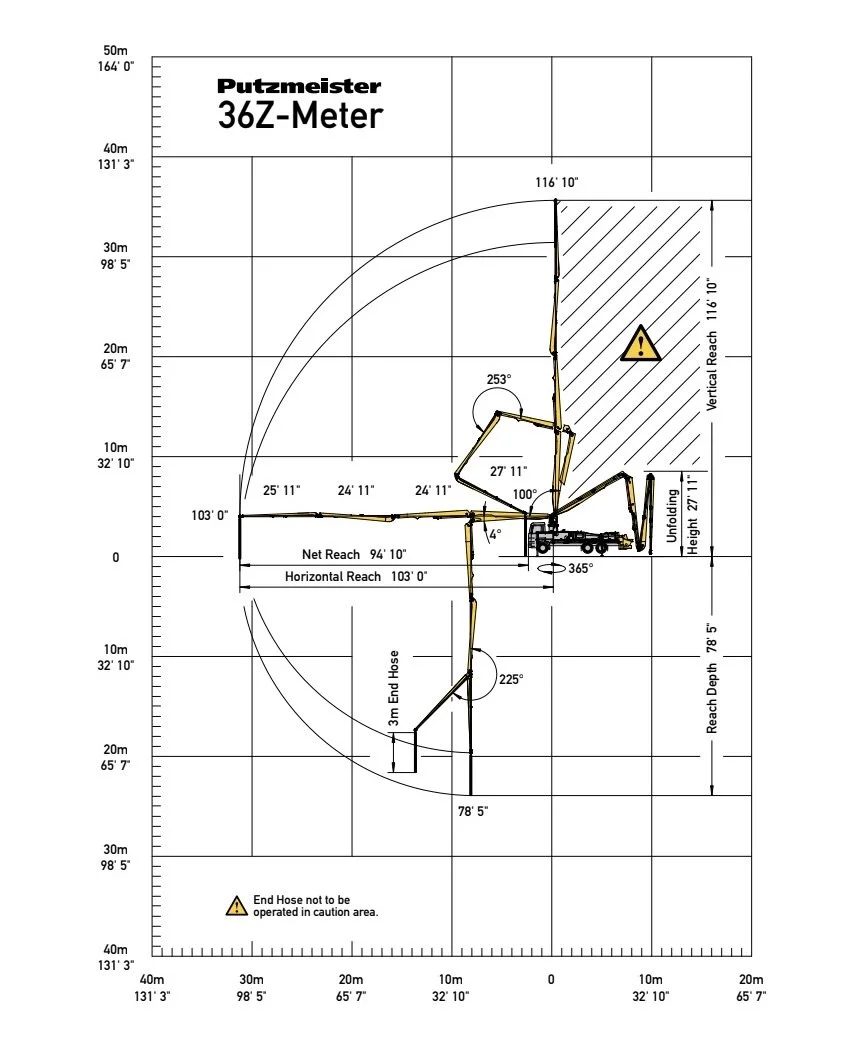

36 Meter Boom Pump - Putzmeister

    PUMP SPECIFICATIONS
    36Z.12H
    36Z.16H



    Output— rod side
    144yd³/hr (110m³/hr)
    210 yd³/hr (160m³/hr)


    Output— piston side
    97 yd³/hr (74m³/hr)
    141yd³/hr (108m³/hr)


    Pressure— rod side
    1,233 psi (85 bar)
    1,233 psi (85 bar)


    Pressure— piston side
    1,885 psi (130 bar)
    1,885 psi (130 bar)


    Material cylinder diameter
    9" (230mm)
    9" (230mm)


    Stroke length
    83" (2,100mm)
    83" (2,100mm)


    Maximum strokes per minute— rod side
    21
    31


    Maximum strokes per minute— piston side
    14
    21


    Volume control
    0-Full
    0-Full


    Vibrator
    Standard
    Standard


    Hard-chromed material cylinders
    Standard
    Standard


    Hydraulic system
    Free Flow
    Free Flow


    Hydraulic system pressure
    5,075 psi (350 bar)
    5,075 psi (350 bar)


    Differential cylinder diameter
    5.5" (140mm)
    5.5" (140mm)


    Rod diameter
    3.1" (80mm)
    3.1" (80mm)


    Maximum size aggregate
    2.5" (63mm)
    2.5" (63mm)


    Water tank— pedestal
    185 gal (700L)
    185 gal (700L)


    SPECIFICATIONS
    U.S.
    Metric



    Length
    36' 5"
    11.10m


    Width
    8' 2"
    2.50m


    Height
    12' 9"
    3.90m


    Wheelbase
    223"
    5,664mm


    Front axle weight
    18,164 lbs
    8,239kg


    Rear axle weight
    33,966 lbs
    15,407kg


    Approx. total weight
    52,130 lbs
    23,646kg


    Vertical reach
    116' 10"
    35.61m


    Horizontal reach
    103' 0"
    31.39m


    Reach from front of truck
    94' 10"
    28.91m


    Reach depth
    78' 5"
    23.90m


    Unfolding height
    27' 11"
    8.51m


    1st section articulation
    104°


    2nd section articulation
    180°


    3rd section articulation
    253°


    4th section articulation
    225°


    1st section length
    27' 11"
    8.51m


    2nd section length
    24' 11"
    7.59m


    3rd section length
    24' 11"
    7.59m


    4th section length
    25' 11"
    7.90m


    Pipeline Size (ID) metric ends
    5"
    125mm


    Rotation
    365°


    End hose— length
    10' 0"
    3.00m


    End hose— diameter
    5"
    125mm


    Outrigger spread L - R — front
hydraulically extend out & down
    18' 1"
    5.51m


    Outrigger spread L - R — rear
hydraulically swing out & extend down
    23' 0"
    7.00m

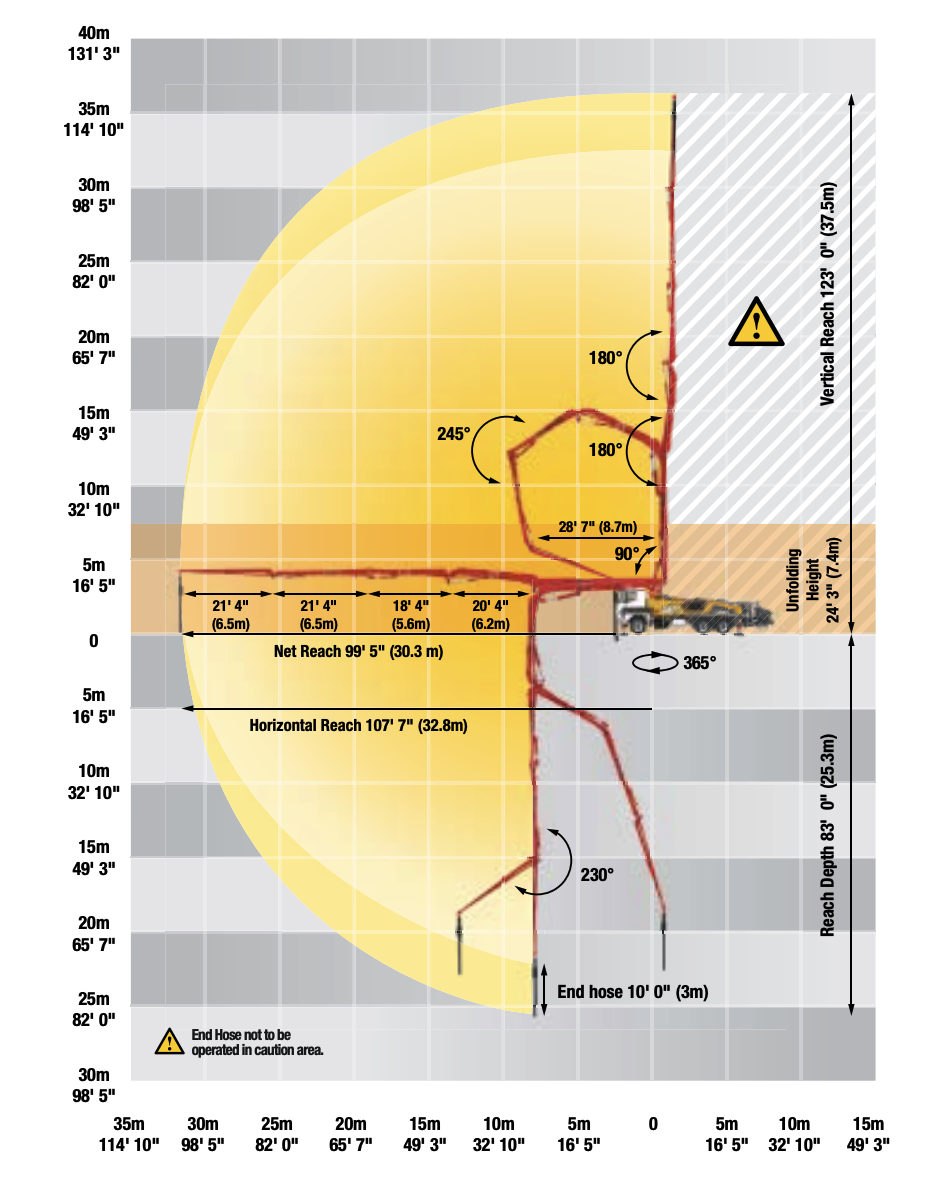

38 Meter Boom Pump – Putzmeister

    PUMP SPECIFICATIONS
    38Z-5.16H
    38Z-5.18H LS



    Output—rod side
    210yd³/hr(160m³/hr)
    —


    Output— piston side
    141yd³/hr(108m³/hr)
    238yd³/hr(182m³/hr)


    Pressure— rod side
    1,233 psi (85 bar)
    —


    Pressure— piston side
    1,885 psi (130 bar)•
    1,233 psi (85 bar)•


    Material cylinder diameter
    9" (230mm)
    10" (250mm)


    Stroke length
    83" (2,100mm)
    83" (2,100mm)


    Maximum strokes per minute
—rod side
—piston side

31
21

—
29


    Volume control
    0-Full
    0-Full


    Vibrator
    Standard
    Standard


    Hard-chromed material cylinders
    Standard
    Standard


    Hydraulic system
    Free Flow
    Free Flow


    Hydraulic system pressure
    5,075 psi (350 bar)
    5,075 psi (350 bar)


    Differential cylinder diameter
    5.5" (140mm)
    5.5" (140mm)


    Rod diameter
    3.1" (80mm)
    3.1" (80mm)


    Maximum size aggregate
    2.5" (63mm)
    2.5" (63mm)


    Water tank— pedestal
    185 gal (700L)
    185 gal (700L)


    SPECIFICATIONS
    U.S.
    Metric

    Length
    40' 11"
    12.48m

    Width
    8' 2"
    2.50m

    Height
    12' 9"
    3.90m

    Wheelbase
    231"
    5,867mm

    Front axle weight
    18,880 lbs
    8,564kg

    Rear axle weight
    37,540 lbs
    17,028kg

    Approx. total weight
    56,420 lbs
    25,592kg

    HEIGHT & REACH

    Vertical reach
    123' 0"
    37.50m

    Horizontal reach
    107' 7"
    32.80m

    Reach from front of truck
    99' 5"
    30.30m

    Reach depth
    83' 70"
    25.30m

    Unfolding height
    24' 3"
    7.40m

    5-SECTION BOOM

    1st section articulation
    90°

    2nd section articulation
    180°

    3rd section articulation
    180°

    4th section articulation
    245°

    5th section articulation
    230°

    1st section length
    28' 7"
    8.70m

    2nd section length
    20' 4"
    6.20m

    3rd section length
    18' 4"
    5.60m

    4th section length
    21' 4"
    6.50m

    5th section length
    21' 4"
    6.50m

    Pipeline Size (ID) metric ends
    5"
    125mm

    Rotation
    365°

    End hose—length
    10' 0"
    3.00m

    End hose—diameter
    5"
    125mm

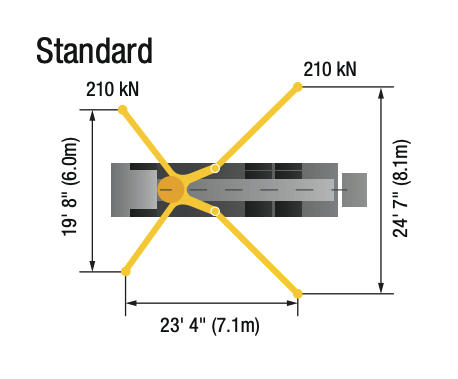

    Outrigger spread L-R— front

hydraulically extended out & down
    19' 8"
    6.00m

    Outrigger spread L-R— rear
hydraulically swing out & extend down
    24' 7"
    8.10m

39 Meter Boom Pump - Putzmeister

    SPECIFICATIONS
    Imperial
    Metric

    Length
    40' 11"
    12.48m

    Width
    8' 2"
    2.50m

    Height
    12' 9"
    3.90m

    Wheelbase
    231"
    5,867mm

    Front axle weight
    18,831 lbs
    8,542 kg

    Rear axle weight
    37,564 lbs
    17,039 kg

    Approx. total weight
    56,395 lbs
    25,581 kg

    HEIGHT & REACH

    Vertical reach
    126' 4"
    38.50 m

    Horizontal reach
    110' 3"
    33.60 m

    Reach from front of truck
    100' 9"
    30.70 m

    Reach depth
    78' 9"
    24.00 m

    Unfolding height
    29' 6"
    9.00 m

    4-SECTION BOOM

    1st section articulation
    90°

    2nd section articulation
    180°

    3rd section articulation
    245°

    4th section articulation
    230°

    1st section length
    31' 10"
    9.70 m

    2nd section length
    26' 7"
    8.10 m

    3rd section length
    26' 11"
    8.20 m

    4th section length
    27' 3"
    8.30 m

    Pipeline Size (ID) metric ends
    5"
    125 mm

    Rotation
    365°

    End hose—length
    10' 0"
    3.00 m

    End hose—diameter
    5"
    125 mm

    Outrigger spread L - R—front
hydraulically swing out & extend down
    19' 8"
    6.00 m

    Outrigger spread L - R —rear
hydraulically swing out & extend down
    24' 7"
    8.10 m

    PUMP SPECIFICATIONS
    39Z.13 HPD
    39z.16 H




    Imperial
    Metric
    Imperial
    Metric


    Output — rod side
    180 yd³/hr
    138 m³/hr
    210 yd³/hr
    160 m³/hr


    Output — piston side
    123 yd³/hr
    94 m³/hr
    141 yd³/hr
    108 m³/hr


    Pressure — rod side
    1,233 psi
    85 bar
    1,233 psi
    85 bar


    Pressure — piston side
    1,885 psi •
    130 bar •
    1,885 psi •
    130 bar •


    Material cylinder diameter
    9"
    230 mm
    9"
    230 mm


    Stroke length
    83"
    2,100 mm
    83"
    2,100 mm


    Maximum strokes per minute
— rod side
— piston side



26
18


31
21


    Volume control

    0-Full

    0-Full


    Vibrator

    Standard

    Standard


    Hard-chromed material cylinders

    Standard

    Standard


    Hydraulic system

    Free Flow

    Free Flow


    Hydraulic system pressure
    5,075 psi
    350 bar
    5,075 psi
    350 bar


    Differential cylinder diameter
    6.3"
    160 mm
    5.5"
    140 mm


    Rod diameter
    3.5"
    90 mm
    3.1"
    80 mm


    Maximum size aggregate
    2.5"
    63 mm
    2.5"
    63 mm


    Water tank — pedestal
    185 gal
    700 L
    185 gal
    700 L

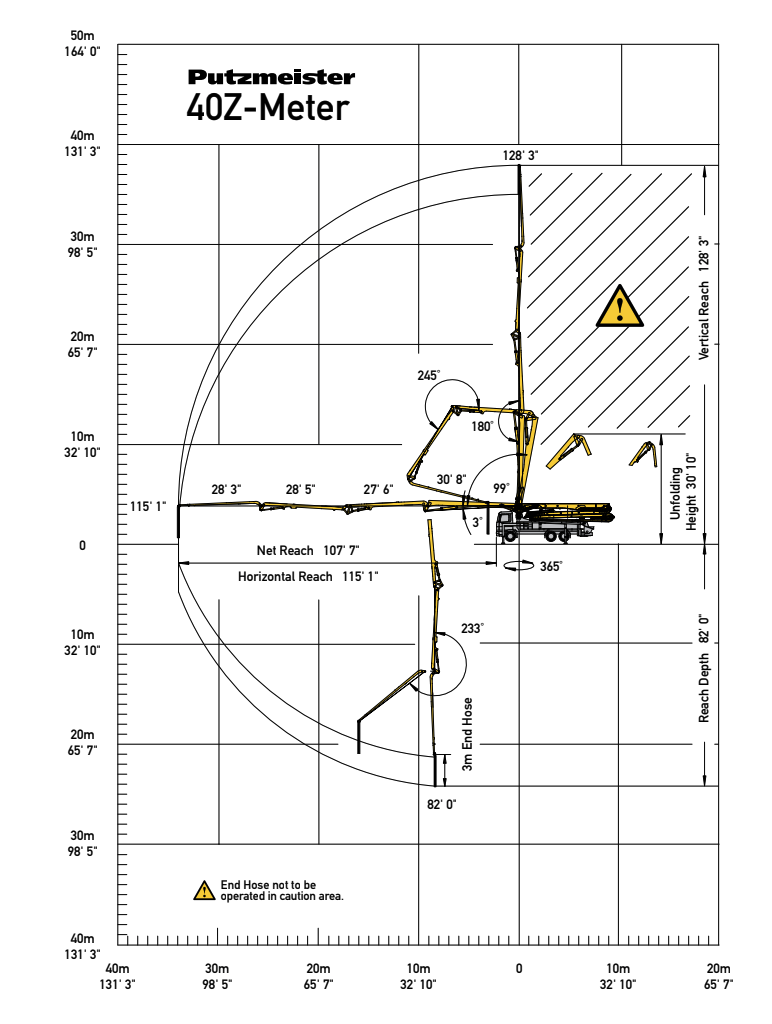

40 Meter Boom Pump - Putzmeister

    SPECIFICATIONS
    U.S.
    Metric

    Length
    40' 3"
    12.27 m

    Width
    8' 2"
    2.50 m

    Height
    12' 11"
    3.94 m

    Wheelbase
    215"
    5,461 mm

    Front axle weight
    18,760 lbs
    8,510 kg

    Rear axle weight
    38,470 lbs
    17,450 kg

    Approx. total weight
    57,230 lbs
    25,960 kg

    HEIGHT & REACH

    Vertical reach
    128' 3"
    39.10 m

    Horizontal reach
    115' 1"
    35.10 m

    Reach from front of truck
    107' 7"
    32.80 m

    Reach depth
    82' 0"
    25.00 m

    Unfolding height
    30' 10"
    9.40 m

    4-SECTION BOOM

    1st section articulation
    102°

    2nd section articulation
    180°

    3rd section articulation
    245°

    4th section articulation
    233°

    1st section length
    30' 8"
    9.40 m

    2nd section length
    27' 6"
    8.40 m

    3rd section length
    28' 5"
    8.70 m

    4th section length
    28' 3"
    8.60 m

    Pipeline Size (ID) metric ends
    4.6"
    117 mm

    Rotation
    365°

    End hose — length
    10' 0"
    3.00 mm

    End hose — diameter
    4.5"
    115 mm

    Outrigger spread L - R — front
hydraulically extend out & down
    20' 8"
    6.30 m

    Outrigger spread L - R — rear
hydraulically swing out & extend down
    21' 3"
    6.50 m

    PUMP SPECIFICATIONS
    40Z.12H
    40Z.16H



    Output— rod side
    144 yd³/hr (110m³/hr)
    210 yd³/hr (160m³/hr)


    Output— piston side
    97 yd³/hr (74m³/hr)
    141yd³/hr (108m³/hr)


    Pressure— rod side
    1,233 psi (85 bar)
    1,233 psi (85 bar)


    Pressure— piston side
    1,885 psi (130 bar)•
    1,855 psi (130 bar)•


    Material cylinder diameter
    9° (230mm)
    9° (230mm)


    Stroke length
    83° (2,100mm)
    83° (2,100mm)


    Material strokes per minute
—rod side
—piston side

21
14

31
21


    Volume control
    0-Full
    0-Full


    Vibrator
    Standard
    Standard


    Hard-chromed material cylinders
    Standard
    Standard


    Hydraulic system
    Free Flow
    Free Flow


    Hydraulic system pressure
    5,075 psi (350 bar)
    5,075 psi (350 bar)


    Differential cylinder diameter
    5.5° (140mm)
    5.5° (140mm)


    Rod diameter
    3.1° (80mm)
    3.1° (80mm)


    Maximum size aggregate
    2.5° (63mm)
    2.5° (63mm)


    Water tank — pedestal
    185 gal (700L)
    185 gal (700L)

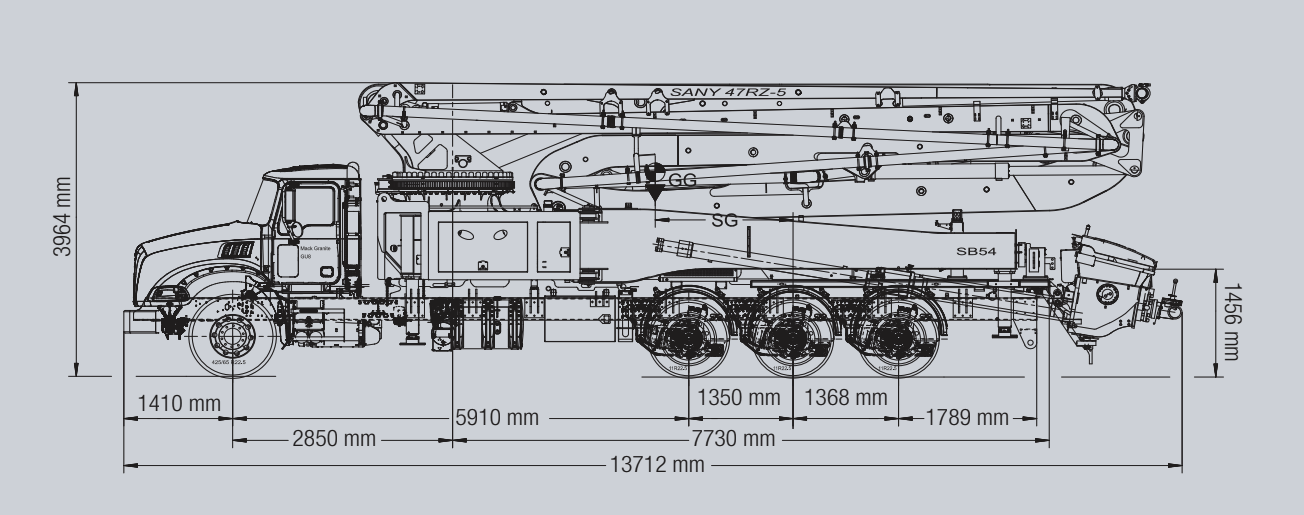

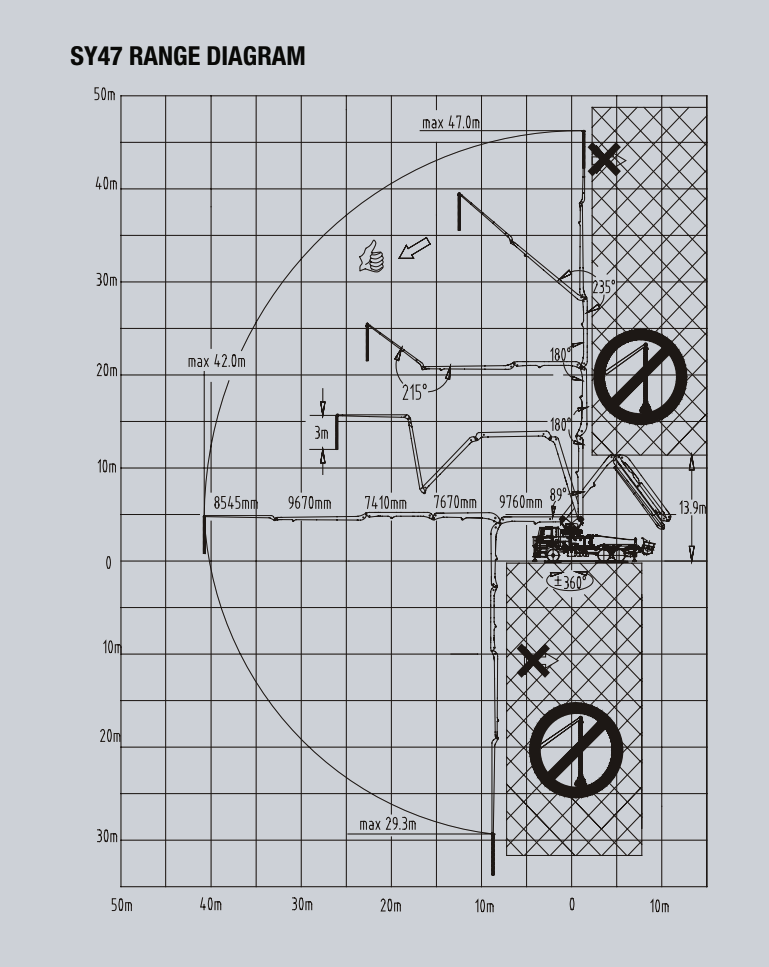

47 Meter Boom Pump - Sany

    SPECIFICATIONS

    Length
    45' 0"
    (13.7 m)

    Width
    8' 5"
    (2.6 m)

    Height
    13' 1"
    (4.0 m)

    Weight
    79,460 lbs
    (36,043 kg)

    Boom Folding Pattern
    RZ

    Boom Rotation

    ±360

    Boom Arms

    5

    Vertical Reach
    154' 2"
    (47 m)

    Horizontal Reach
    137' 10"
    (42 m)

    Unfolding Height
    45' 7"
    (13.9 m)

    Type of Outriggers
    X Extension /
    Swing out

    Front Outrigger Spread
    28' 3"
    (8.6 m)

    Rear Outrigger Spread
    29' 6"
    (9.0 m)

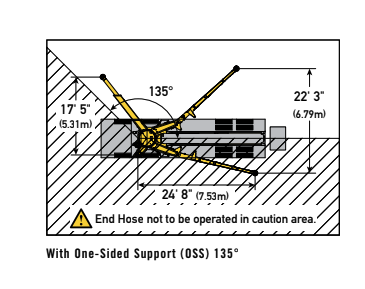

    One Side Support (OSS)

    Yes

    SANY PCU model

    SY-200

    Main Oil Pump

    Rexroth

    Hydraulic System Configuration

    Open

    Hydraulic System Pressure (bar)
    4641 psi
    (320 bar)

    Output - Rod Side (m³/hr)
    260 yd³/hr
    (200 m³/hr)

    Output - Piston Side (m³/hr)
    180 yd³/hr
    (137 m³/hr)

    Pressure - Rod Side (bar)
    1201 psi
    (83 bar)

    Pressure - Piston Side (bar)
    1757 psi
    (120 bar)

    Strokes Per Minute - Rod Side

    33

    Strokes Per Minute - Piston Side

    23

    Material Cylinder Diameter (mm)

    10.2"

    Stroke Length (mm)

    74.8"

    Height

    55"

    Capacity

    159 gal

47 Meter Boom Pump - Putzmeister

    PUMP SPECIFICATIONS
    47Z.16H
    47Z.18H LS



    Output — rod side
    210 yd³/hr (160m³/hr)
    —


    Output — piston side
    141 yd³/hr (108m³/hr)
    238 yd³/hr (182m³/hr)


    Pressure — rod side
    1,233 psi (85 bar)
    1,233 psi (85 bar)


    Pressure — piston side
    1,885 psi (130 bar)•
    1,233 psi (85 bar)


    Material cylinder diameter
    9" (230mm)
    10" (250mm)


    Stroke length
    83" (2,100mm)
    83" (2,100mm)


    Maximum strokes per minute
—rod side
— piston side

31
21

—
29


    Volume control
    0-Full
    0-Full


    Vibrator
    Standard
    Standard


    Hard-chromed material cylinders
    Standard
    Standard


    Hydraulic system
    Free Flow
    Free Flow


    Hydraulic system pressure
    5,075 psi (350 bar)
    5,075 psi (350 bar)


    Differential cylinder diameter
    5.5" (140mm)
    5" (125mm)


    Rod diameter
    3.1" (80mm)
    3.1" (80mm)


    Maximum size aggregate
    2.5" (63mm)
    2.5" (63mm)


    Water tank — pedestal
    211 gal (800L)
    211 gal (800L)


    SPECIFICATIONS
    U.S.
    Metric

    Length
    39' 1"
    (11.90m)

    Width
    8' 2"
    (2.50m)

    Height
    12' 8"
    (3.88 m)

    Wheelbase
    266"
    (6,756mm)

    Front axle weight
    32,831 lbs
    (14,892 kg)

    Rear axle weight
    37,289 lbs
    (16,914 kg)

    Approx. total weight
    70,120 lbs
    (31,806 kg)

    HEIGHT & REACH

    Vertical reach
    151' 3"
    (46.10m)

    Horizontal reach
    134' 11"
    (41.10m)

    Reach from front of truck
    124' 8"
    (38.00m)

    Reach depth
    106' 4"
    (32.40m)

    Unfolding height
    36' 5"
    (11.10m)

    5-SECTION BOOM

    1st section articulation
    90°

    2nd section articulation
    180°

    3rd section articulation
    180°

    4th section articulation
    235°

    5th section articulation
    230°

    1st section length
    31' 10"
    (9.70m)

    2nd section length
    25' 7"
    (7.80m)

    3rd section length
    24' 7"
    (7.49m)

    4th section length
    27' 11"
    (8.50m)

    5th section length
    28' 3"
    (8.60m)

    Pipeline Size (ID) metric ends
    5"
    (125mm)

    Rotation
    365°

    End hose — length
    10' 0"
    (3.00m)

    End hose — diameter
    5"
    (125mm)

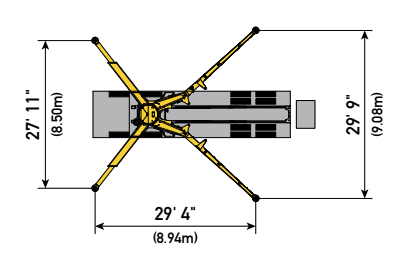

    Outrigger L - R — front
hydraulically extend out & down
    27' 11"
    (8.50m)

    Outrigger spread L - R — rear
hydraulically swing out & extend down
    29' 9"
    (9.08m)

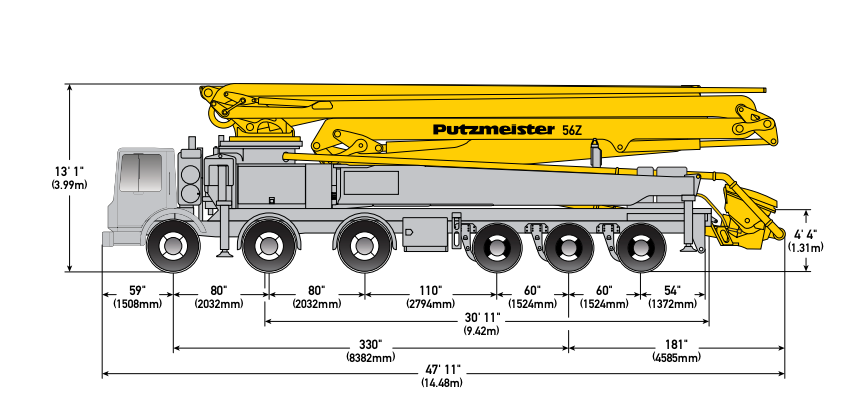

56 Meter Boom Pump - Putzmeister

    PUMP SPECIFICATIONS
    56Z.16H
    56Z.16H LS



    Output —rod side
    210 yd³/hr (160m³/hr)
    —


    Output — piston side
    146yd³/hr (112m³/hr)
    210yd³/hr (160m³/hr)


    Pressure — rod side
    1,233 psi (85 bar)
    —


    Pressure — piston side
    1,885 psi (130 bar)•
    1,233 psi (85 bar)


    Material cylinder diameter
    9" (230mm)
    10" (250mm)


    Stroke length
    83" (2,100mm)
    83" (2,100mm)


    Maximum strokes per minute
—rod side
—piston side
    31
21
    —
26


    Volume control
    0-Full
    0-Full


    Vibrator
    Standard
    Standard


    Hard-chromed material cylinders
    Standard
    Standard


    Hydraulic system
    Free Flow
    Free Flow


    Hydraulic system pressure
    5,075 psi (350 bar)
    5,075 psi (350 bar)


    Differential cylinder diameter
    5.5" (140mm)
    5.5" (140mm)


    Rod diameter
    3.1" (80mm)
    3.1" (80mm)


    Maximum size aggregate
    2.5" (63mm)
    2.5" (63mm)


    Water tank — pedestal
    185 gal (700L)
    185 gal (700L)


    SPECIFICATIONS
    U.S.
    METRIC

    Length
    47' 11"
    (14.48m)

    Width
    8' 2"
    (2.50m)

    Height
    13' 1"
    (3.99m)

    Wheelbase
    330"
    8,382mm)

    Front axle weight
    52,773 lbs
    (23,938kg)

    Rear axle weight
    48,747 lbs
    (22,111kg)

    Approx. total weight
    100,080 lbs
    (45,396kg)

    HEIGHT & REACH

    Vertical reach
    180' 10"
    (55.12m)

    Horizontal reach
    163' 10"
    (49.94m)

    Reach from front of truck*
    152' 6"
    (46.48m)

    Reach depth
    132' 3"
    (40.30m)

    Unfolding height
    51' 3"
    (15.62m)

    5-SECTION BOOM

    1st section articulation
    90°

    2nd section articulation
    180°

    3rd section articulation
    180°

    4th section articulation
    245°

    5th section articulation
    210°

    1st section length
    34' 1"
    (10.40m)

    2nd section length
    26' 8"
    (8.12m)

    3rd section length
    30' 6"
    (9.30m)

    4th section length
    37' 8"
    (11.48m)

    5th section length
    38' 9"
    (11.80m)

    Pipeline Size (ID) metric ends
    5"
    (125mm)

    Rotation
    365°

    End hose — length
    10' 0"
    (3.00m)

    End hose — diameter
    5"
    (125mm)

    Outrigger spread L - R — front
hydraulically extend out & down
    30' 6"
    (9.30m)

    Outrigger spread L - R — rear
hydraulically swing out & extend down
    40' 2"
    (12.30m)

TK40 Line Pump - Putzmeister

    SPECIFICATIONS

    Maximum volume output
    40 yd³/hr
    (30m³/hr)

    Maximum concrete pressure
    1,150 psi
    (79 bar)

    Maximum aggregate size
    1.50"
    (38mm)

    Material cylinders
    6" x 39"
    (150x1,000mm)

    Maximum strokes per minute
    31

    Variable volume control
    0-Full

    S-Valve (cast)
    6" x 5"
    (150x125mm)

    Number of shift cylinders
    2

    Hydraulic tank capacity
    46 gal
    (175L)

    Hopper height
    49"
    (1,245mm)

    Hopper capacity
    9.5 cu ft
    (270L)

    Outlet diameter
    5" HD
    (125mm)

    Manufacturer's model
    Deutz TD2011L04i

    Horsepower
    68 hp
    (51kW)

    Fuel tank capacity
    26 gal
    (98L)

    Axle
    Single

    Axle capacity
    7,000 lbs
    (3,175kg)

    Tires/Load range
    LT 235/85R16G

    Brakes
    Electric

    Outriggers
    Manual

    Length
    191"
    (4.85m)

    Width
    74.5"
    (1.89m)

    Height
    78"
    (1.98m)

    Weight (approx.)
    5,600 lbs
    (2,540kg)

TK50 Line Pump - Putzmeister

    SPECIFICATIONS

    Maximum volume output
    54 yd³/hr
    (41m³/hr)

    Maximum concrete pressure
    1,150 psi
    (79 bar)

    Maximum aggregate size
    1.50"
    (38mm)

    Material cylinders
    6" x 39"
    (150x1,000mm)

    Maximum strokes per minute
    43

    Variable volume control
    0-Full

    S-Valve (cast)
    6" x 5"
    (150x125mm)

    Number of shift cylinders
    2

    Hydraulic tank capacity
    44 gal
    (167L)

    Hopper height
    49"
    (1,245mm)

    Hopper capacity
    9.5 cu ft
    (270L)

    Outlet diameter
    5" HD
    (125mm)

    Manufacturer's model
    Cummins QSF3.8

    Horsepower
    100 hp
    (75kW)

    Fuel tank capacity
    28 gal
    (105L)

    Axle
    Single

    Axle capacity
    7,000 lbs
    (3,175 kg)

    Tires/Load range
    LT 235/85R16G

    Brakes
    Electric

    Outriggers
    Manual

    Length
    191"
    (4.85m)

    Width
    74.5"
    (1.89m)

    Height
    87"
    (2.21m)

    Weight (approx.)
    6,700 lbs
    (3,040kg)

KTP0706 Line Pump - KCP

    PUMP SPECIFICATIONS

    Engine
    CAT - C3.4B(100PS/2200RPM),EU Stage IV

    Engine rpm
    1900 rpm

    Maximum output
    62m³/h

    Main cylinder
    Ø90 / Ø55 x 1100ST

    Concrete cylinder
    Ø200 x 1100ST

    Cycling system
    Hydraulic with manual overrides

    Stroke per minute
    30

    Concrete pressure
    70 bar

    Hopper capacity
    0.4 m³

    S-tube
    Ø180 x Ø120

    Hydraulic pump
    Kawasaki 112S / Rexroth A11V125S

    Max. aggregate size
    40 MM

    Vertical distance
    100 M (slump 8 cm)

    Horizontal distance
    175 M (slump 8 cm)

Get in Touch!

15140 Meriwether Trl

Ramer, AL 36069

Location

Phone

Office: 334.584.7213

Dispatch/Sales: 334.268.2156
